The 750 kVA Three Phase Dry Type Cast Resin Power Transformer by LUGAO represents a pinnacle in reliable and efficient power distribution for industrial and commercial applications. In this comprehensive guide, we will explore its key features, advantages, technical specifications, installation considerations, and maintenance tips. We also provide practical insights to help engineers, facility managers, and electrical professionals make informed decisions.
Table of Contents
- Introduction to 750 kVA Three Phase Dry Type Cast Resin Power Transformer
- What Are the Advantages of Using Dry Type Cast Resin Transformers?
- Technical Specifications of the 750 kVA Transformer
- How to Install a 750 kVA Dry Type Transformer Safely?
- Maintenance Tips for Longevity and Efficiency
- Comparison Table: Dry Type vs Oil Immersed Transformers
- Frequently Asked Questions
- Conclusion & Contact Information

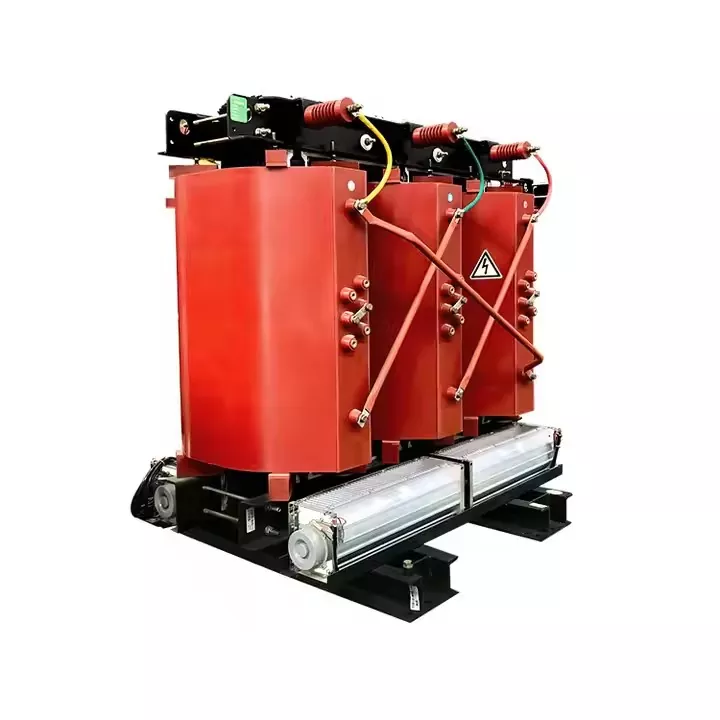

Introduction to 750 kVA Three Phase Dry Type Cast Resin Power Transformer
The 750 kVA Three Phase Dry Type Cast Resin Power Transformer is designed for industrial plants, commercial buildings, and critical infrastructure. Unlike oil-immersed transformers, this cast resin design eliminates fire hazards and minimizes environmental risk. LUGAO's expertise ensures that each transformer meets high standards for performance, safety, and reliability.
- Rated Power: 750 kVA
- Voltage Class: 11kV / 0.4kV (typical)
- Frequency: 50/60 Hz
- Cooling Method: Air Natural (AN)
- Insulation Type: Cast Resin
What Are the Advantages of Using Dry Type Cast Resin Transformers?
Dry type transformers offer several benefits, particularly in sensitive and indoor environments. Key advantages include:
- Fire Safety: No flammable oil is used, reducing fire risk.
- Low Maintenance: Minimal routine checks compared to oil-filled transformers.
- Eco-Friendly: No risk of oil leaks that could contaminate the environment.
- Durability: Resistant to moisture, dust, and corrosion.
- Compact Design: Saves space in industrial or commercial setups.
Technical Specifications of the 750 kVA Transformer
Understanding the technical details is crucial for proper selection. Below is a detailed specification of the LUGAO 750 kVA three phase dry type transformer:
| Parameter | Specification |
|---|---|
| Rated Power | 750 kVA |
| Primary Voltage | 11kV |
| Secondary Voltage | 0.4kV |
| Frequency | 50/60 Hz |
| Insulation Type | Cast Resin |
| Cooling Method | Air Natural (AN) |
| Impedance Voltage | 4% |
| Noise Level | <55 dB |
How to Install a 750 kVA Dry Type Transformer Safely?
Proper installation is vital to ensure safety, efficiency, and longevity. Consider the following steps:
- Site Selection: Install on a firm, level, and ventilated surface.
- Clearance: Maintain minimum 1 meter clearance from walls and other equipment.
- Electrical Connections: Connect according to LUGAO's wiring diagram and local electrical codes.
- Grounding: Ensure proper earthing to prevent electrical hazards.
- Initial Testing: Perform insulation resistance and polarity checks before energizing.
Maintenance Tips for Longevity and Efficiency
Even though dry type transformers require less maintenance than oil-filled transformers, regular checks are important:
- Inspect for dust accumulation and clean periodically.
- Check terminal connections for tightness.
- Monitor temperature and load regularly.
- Ensure ventilation pathways are clear.
- Schedule periodic professional inspections by certified LUGAO technicians.
Comparison Table: Dry Type vs Oil Immersed Transformers
| Feature | Dry Type (Cast Resin) | Oil Immersed |
|---|---|---|
| Fire Risk | Low | High |
| Maintenance | Low | Medium to High |
| Environmental Impact | Eco-Friendly | Potential Oil Spills |
| Indoor Use | Yes | Limited |
| Cost | Moderate | Varies (sometimes higher initial cost) |
Frequently Asked Questions
1. What industries typically use 750 kVA three phase dry type transformers?
These transformers are widely used in manufacturing plants, commercial complexes, hospitals, and data centers where safety, reliability, and low maintenance are crucial.
2. How long is the expected service life?
With proper installation and routine maintenance, LUGAO dry type transformers can last over 25 years.
3. Can this transformer operate in outdoor environments?
Yes, if placed in a weatherproof enclosure that protects against rain, dust, and extreme temperatures.
4. What makes cast resin insulation better than traditional insulation?
Cast resin insulation is more resistant to moisture, fire, and contaminants, providing higher safety and reliability compared to conventional oil-filled transformers.
5. How do I select the right transformer rating?
Consult LUGAO's engineering team to evaluate load requirements, peak demand, and voltage conditions to choose the appropriate kVA rating.
Conclusion & Contact Information
Choosing a 750 kVA Three Phase Dry Type Cast Resin Power Transformer from LUGAO ensures enhanced safety, high efficiency, and long-term reliability for your industrial and commercial applications. By understanding technical specifications, installation requirements, and maintenance practices, you can maximize operational performance and minimize risks.
For more information or to request a quote, contact us today and our LUGAO experts will guide you to the perfect transformer solution for your needs.
